Lämmämõõdusk

Description

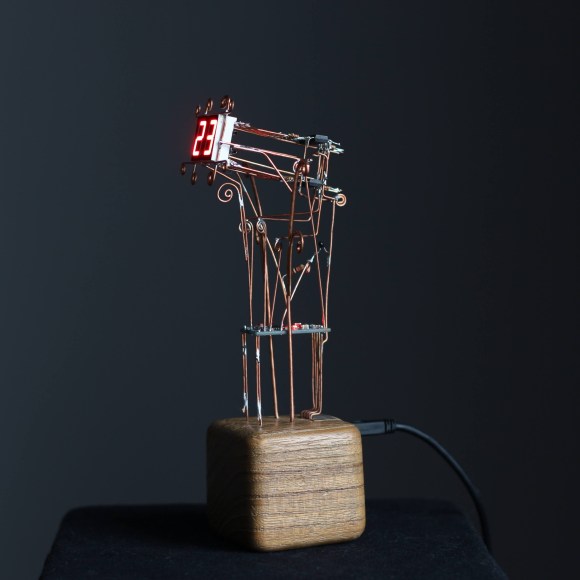

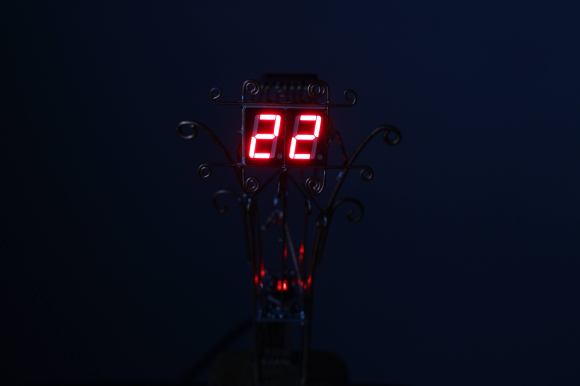

A device that measures the ambient temperature in the environment in which it is located. And displays it on the screen.

Artistic description

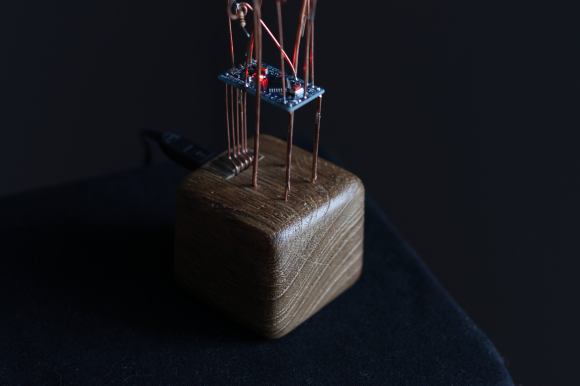

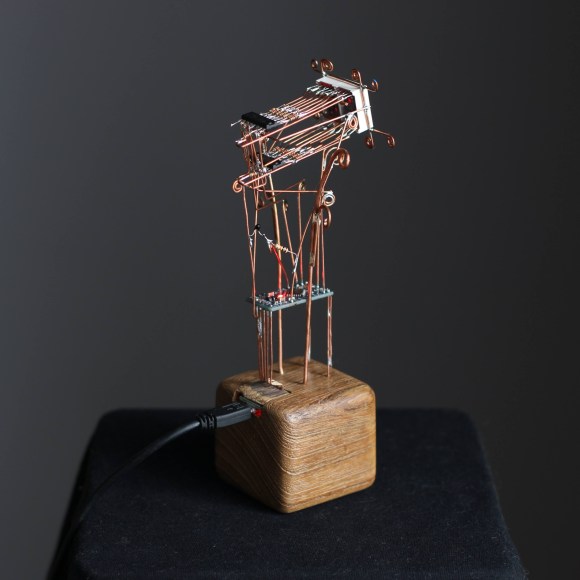

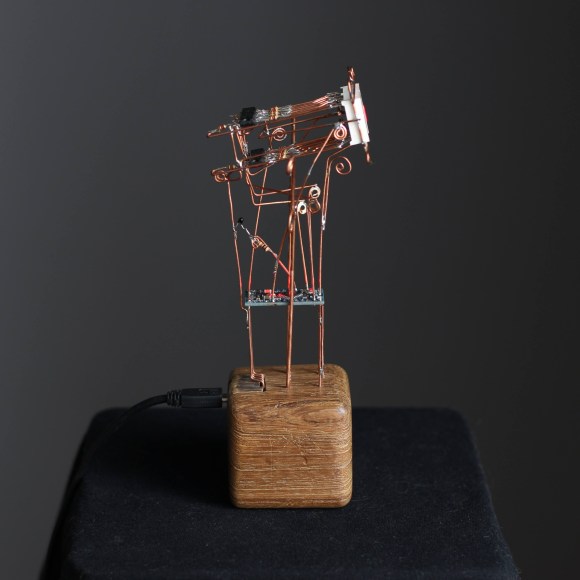

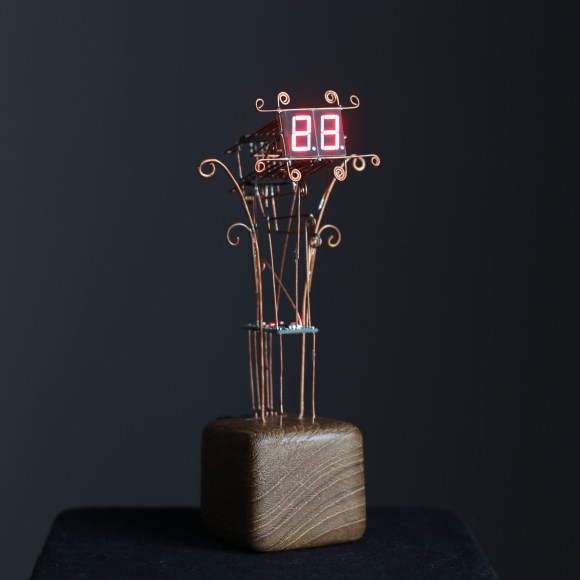

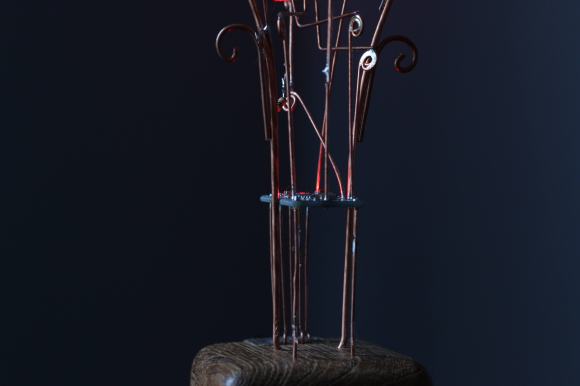

Plant-like structures. Display like blossom. Bottom woodblock aged with brushing with a wire brush and oxidation solution (steel wool + vingar).

Animations

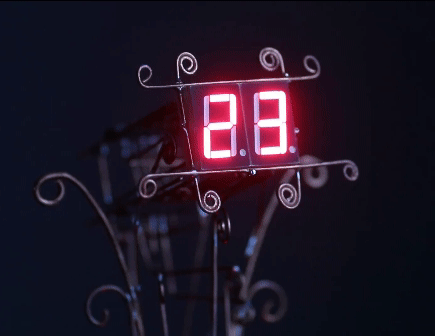

When the number to display changes it plays short animation.

Technical description

The first goal was to test an easier way to connect 7-segs and shift registers.

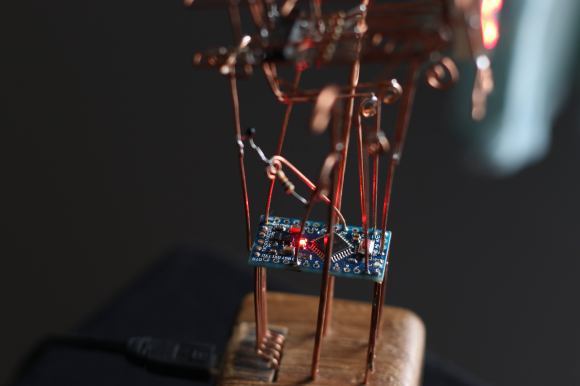

Main CPU, Arduino pro mini, uses thermistor to calculate temperature. Uses two different algorithms for this: Steinhart-hart equation and Beta model equation.

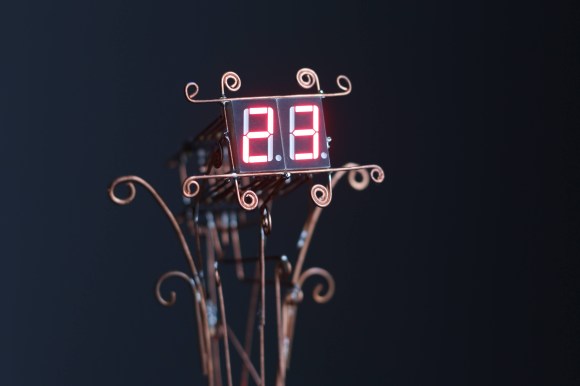

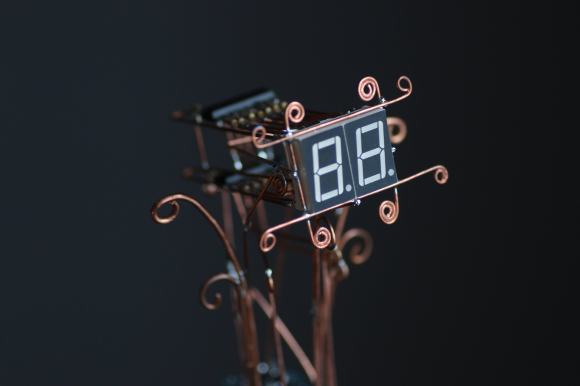

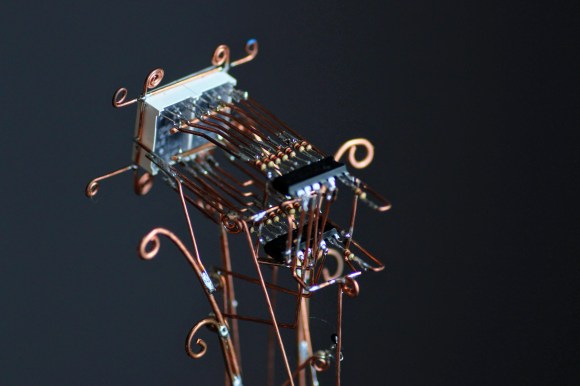

The display consists of two seven-segment displays. Drived by two 74HC595 shift registers. Which is connected to the seven-segment displays in a non-traditional way.This makes the construction easier.

IDE: PlatformIO

The code is in the src directory.

Parts list

noDescriptionpcs
1Arduino pro mini Mega328p 5V1
2Shift Register SN74HC595N2
37-segment 5611BH / 5161BS2
4Resistor 12016
5CH340E USB to TTL BTE17-061
6Thermistor 10k1
7Resistor 10K1

Readin data

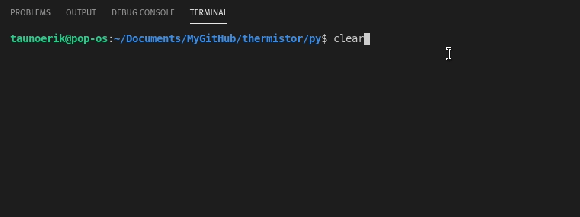

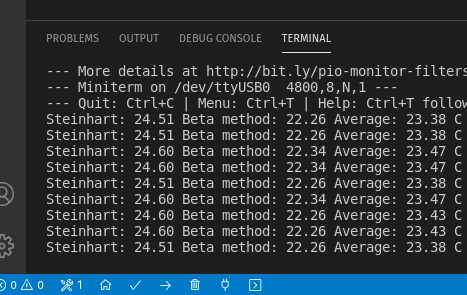

The simplest way to read serial data is to use Miniterm

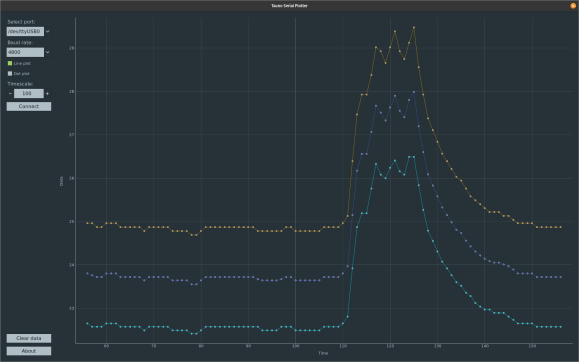

Data viewed on my Serial Plotter.

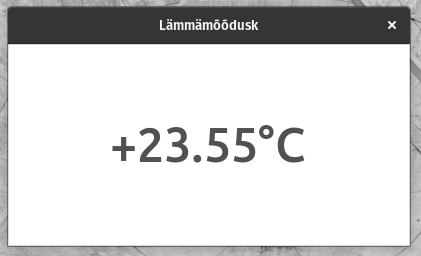

Also, I have made two Python scripts. read.py and simple GUI app gui.py. What display average temperature.
