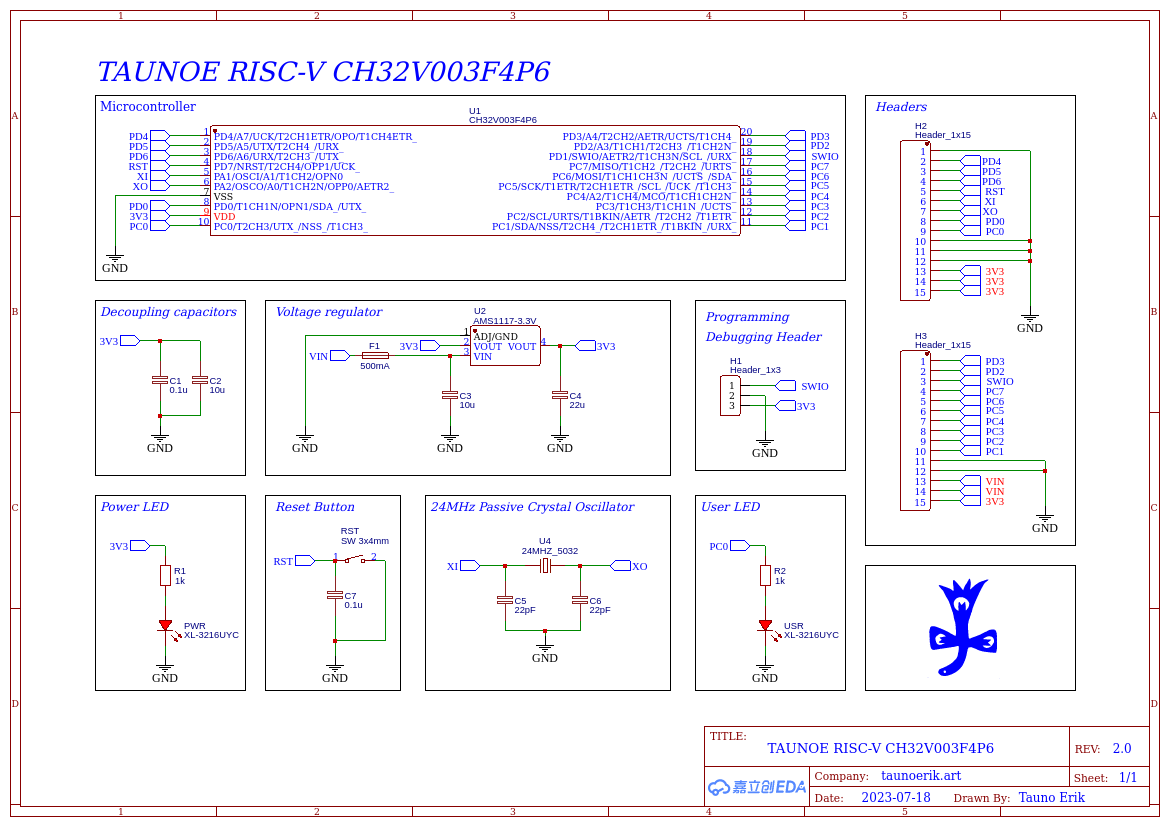

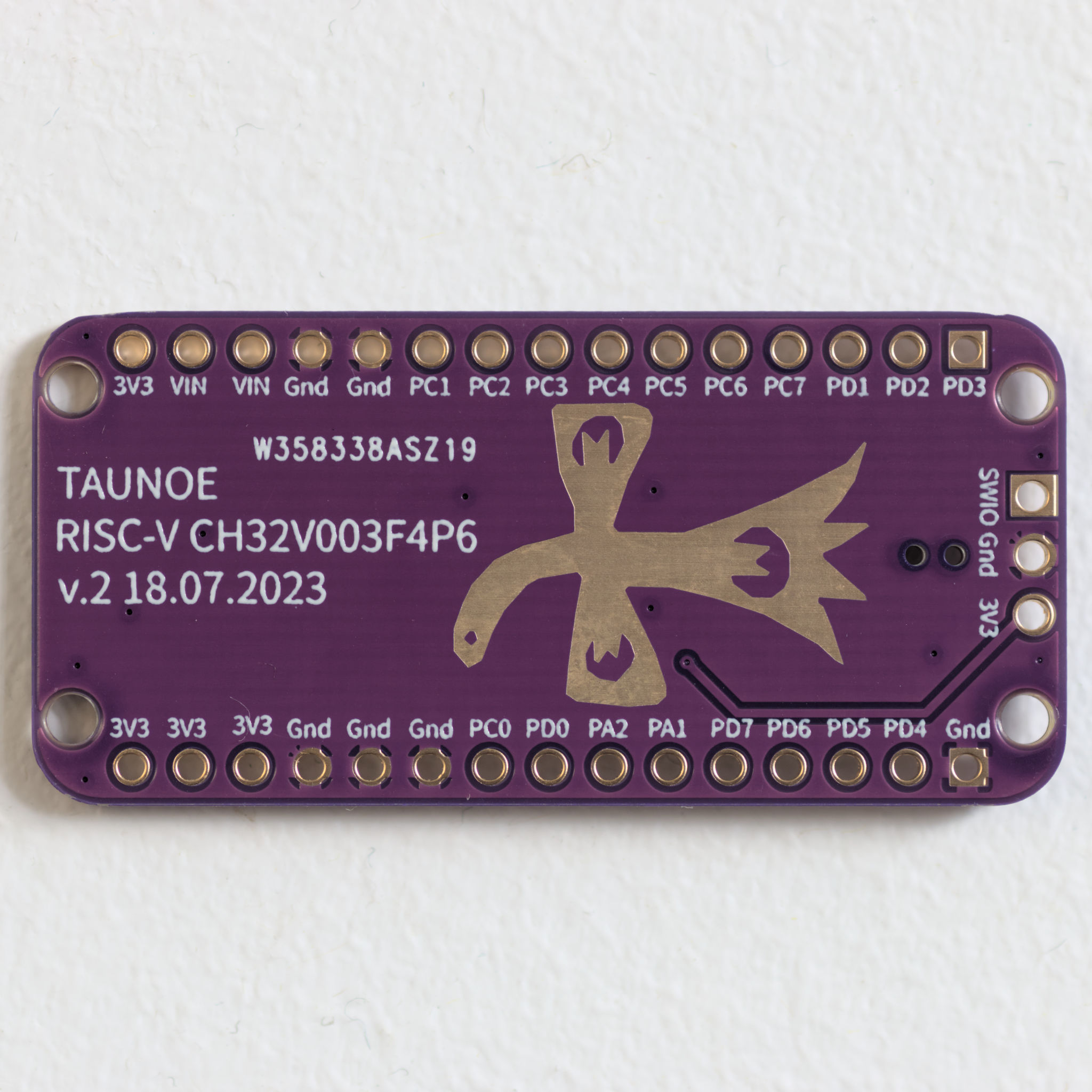

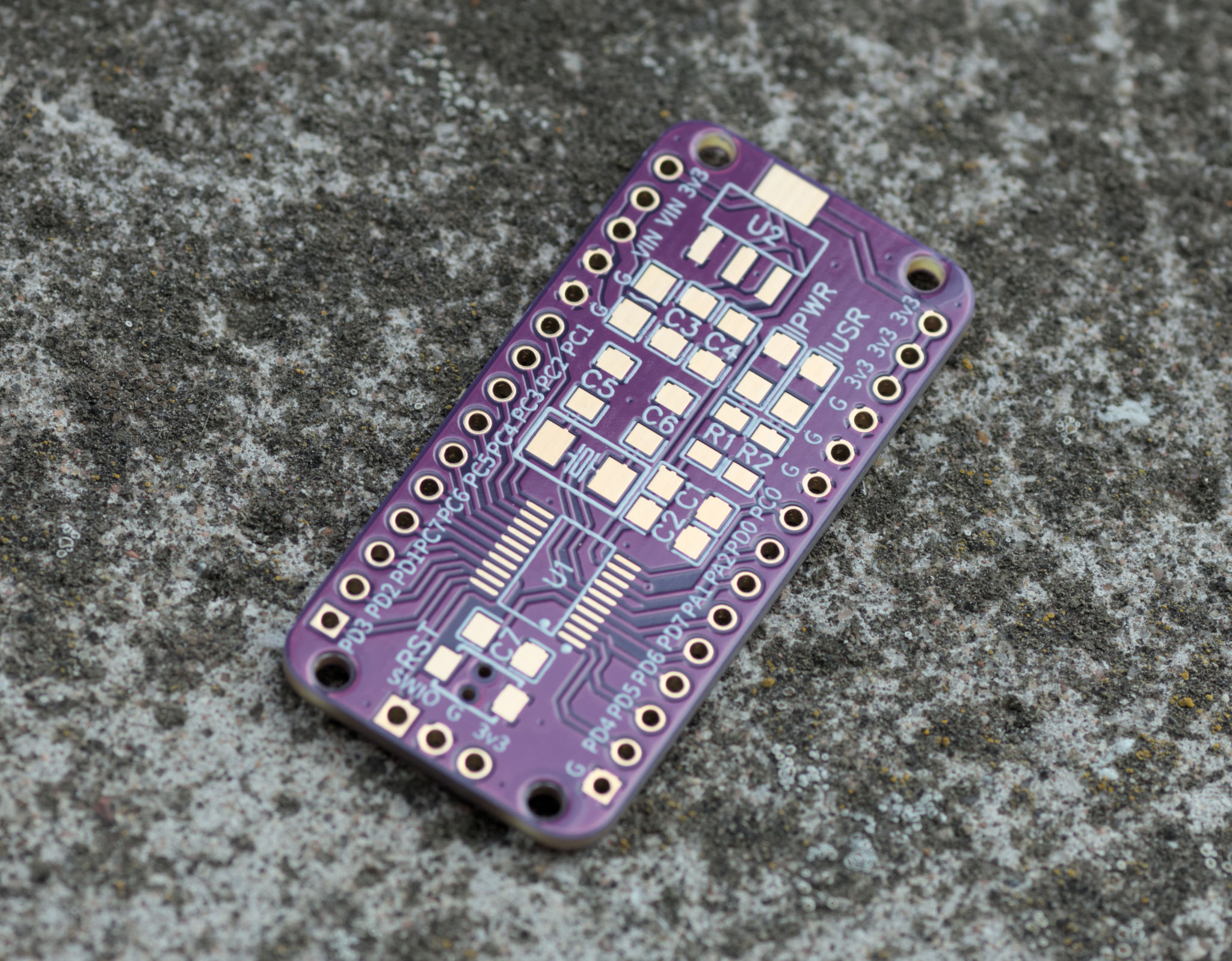

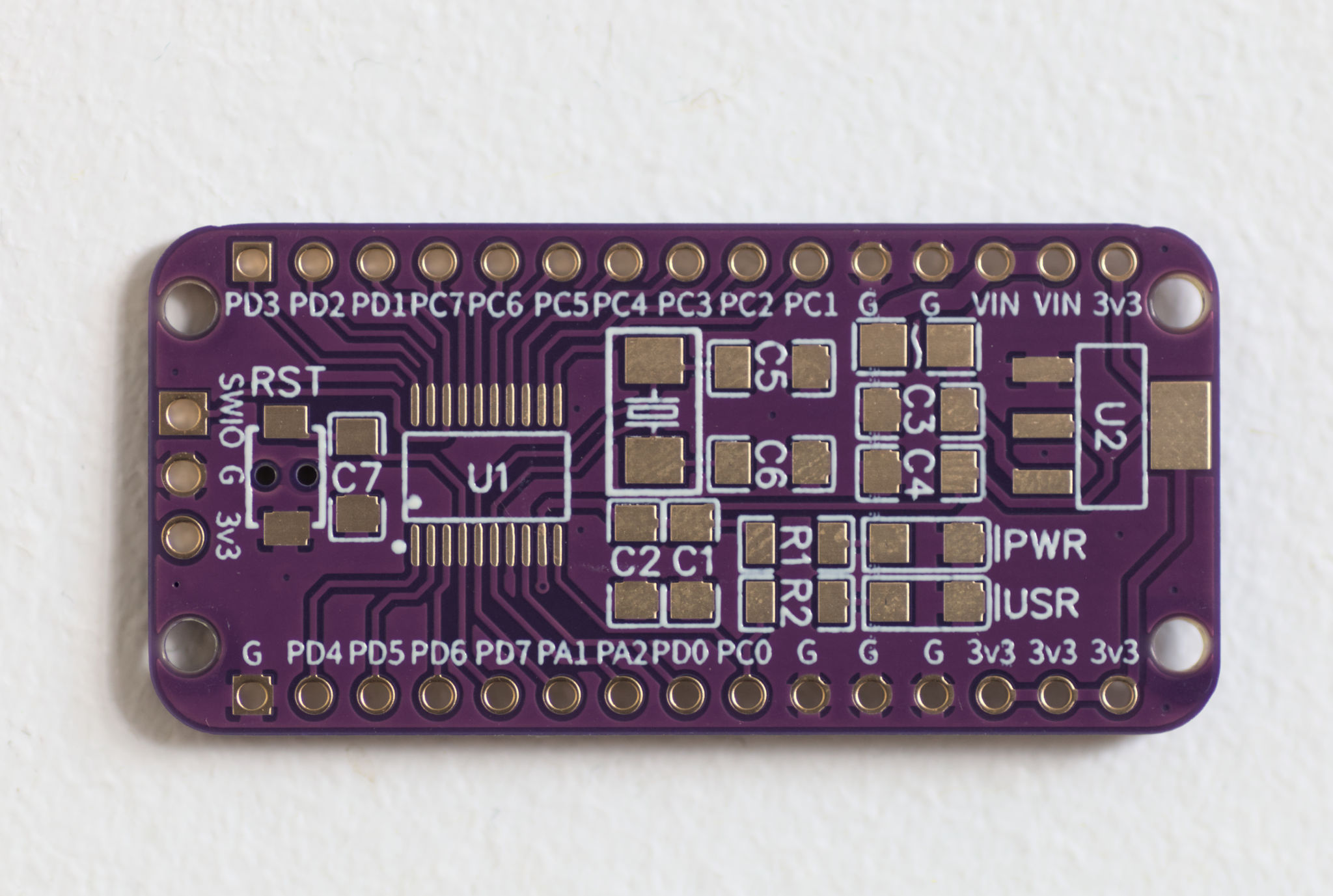

PCBs arrived for my RISC-V CH32V003F4P6 development board.
As always PCBway services are very fast. It was the last part I ordered and the first, that arrived.

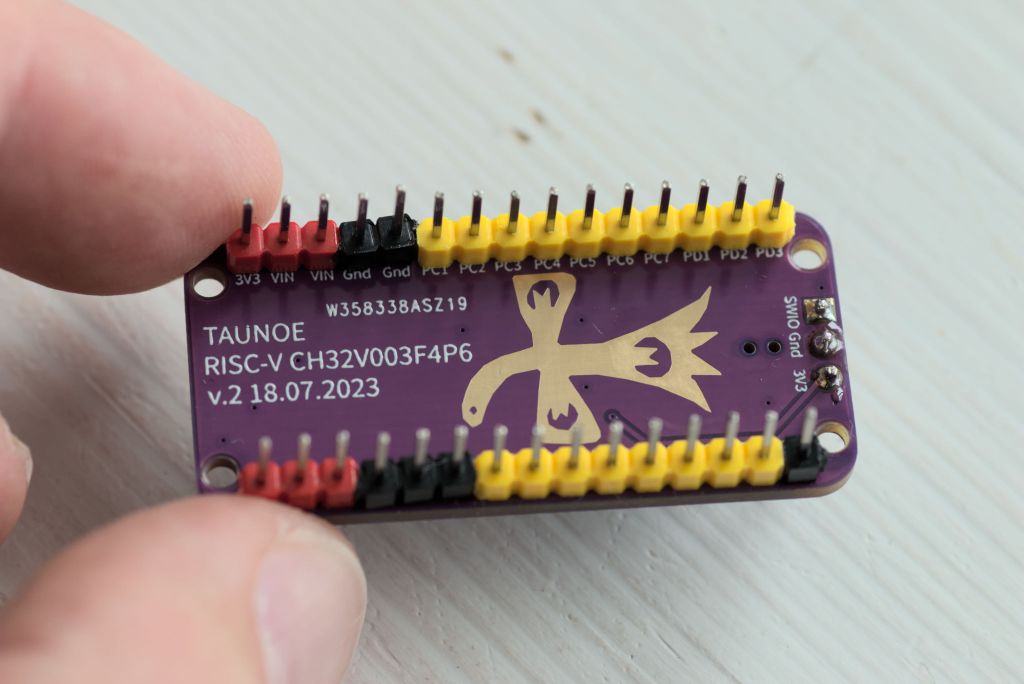

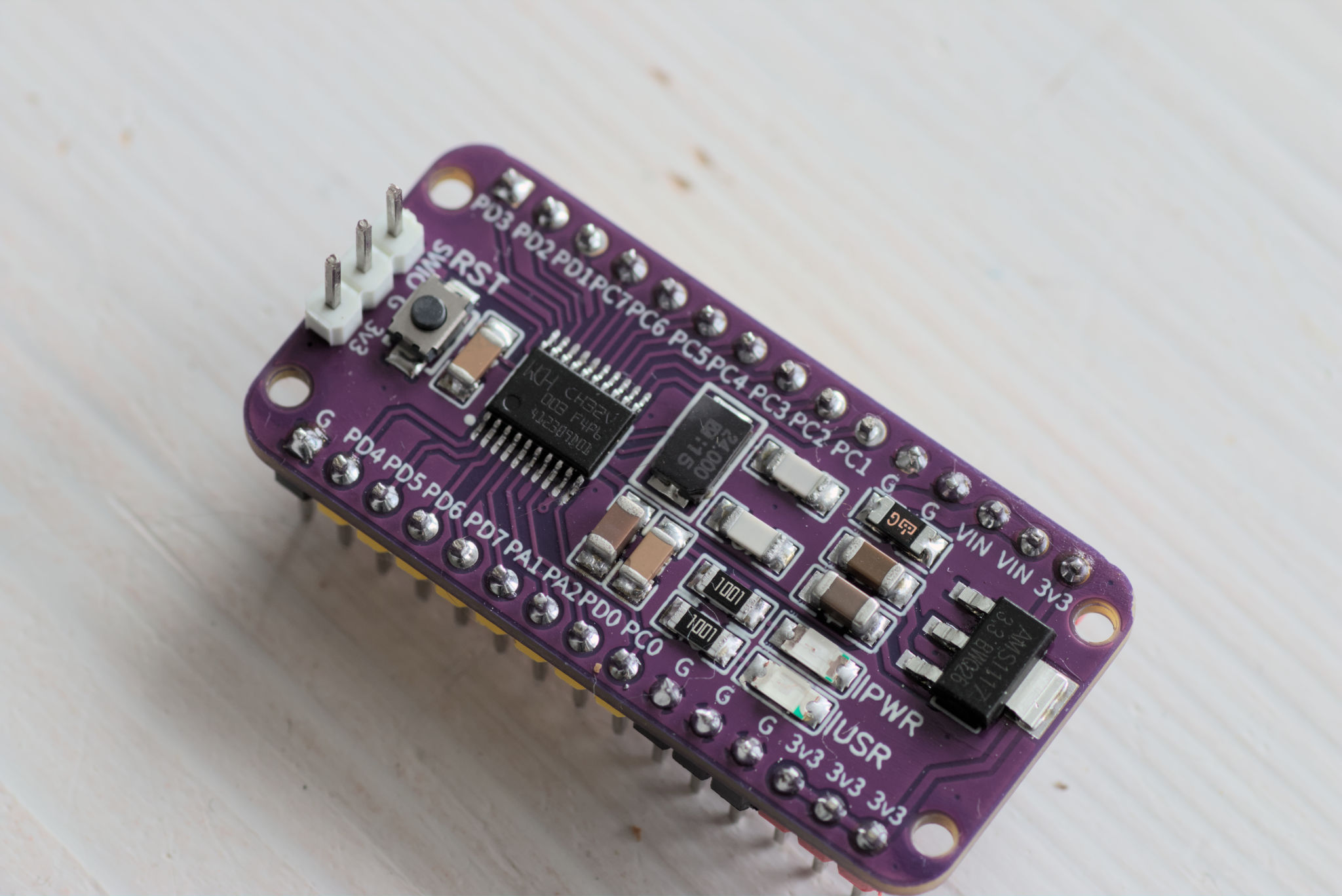

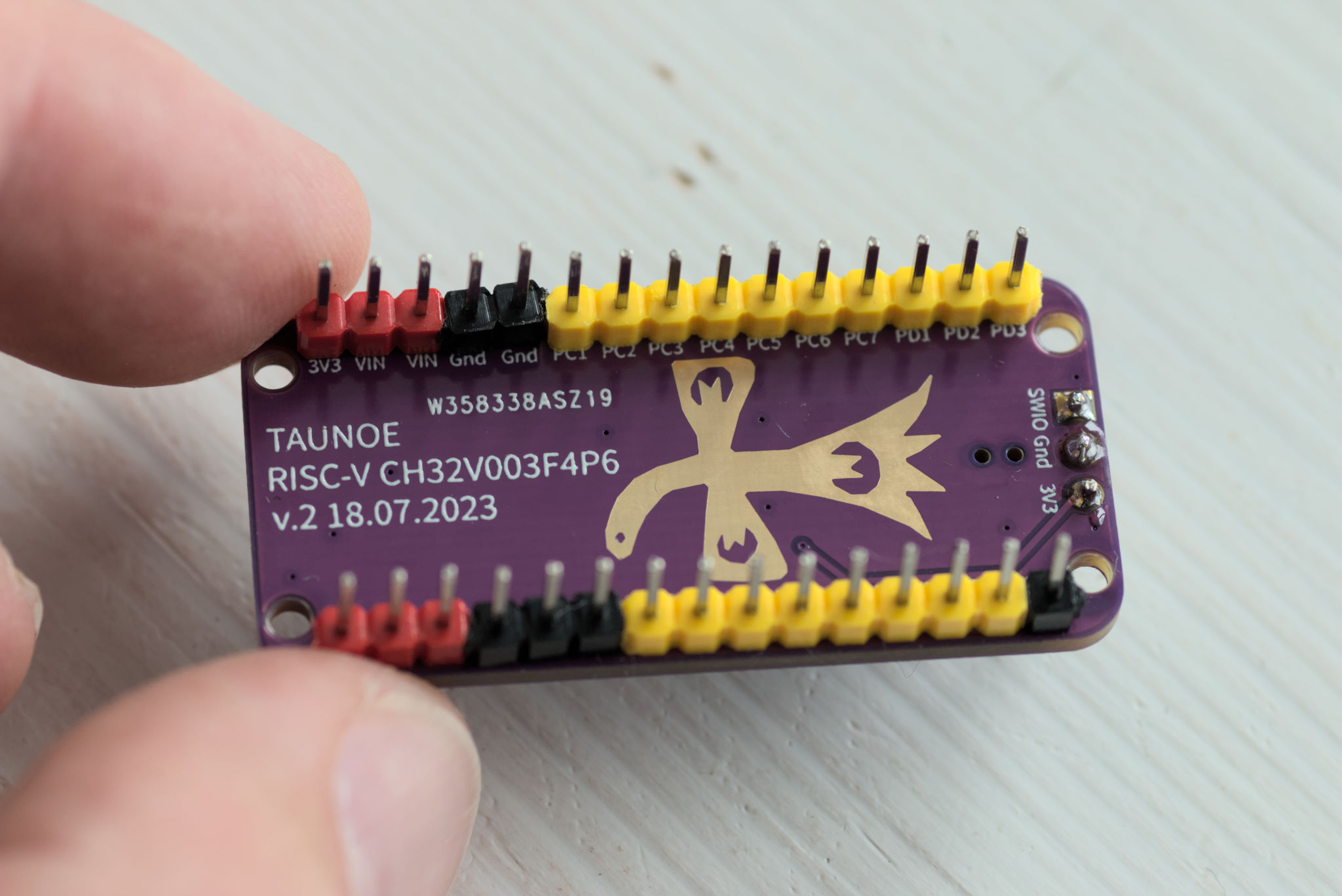

Soldered one of the boards together. So far it works and I’m surprised that I soldered the LEDs in the correct orientation on the first try. I also like to use coloured headers.
PCBs are available at PCBway shared project website.
Demo Blink code works!
Tauno Erik
