Schmitti triger (lülitus)

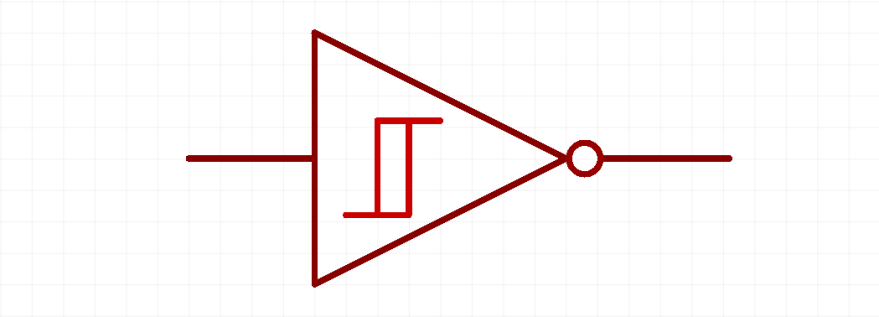

Inverteeritud Schmitti trigeri sümbol:

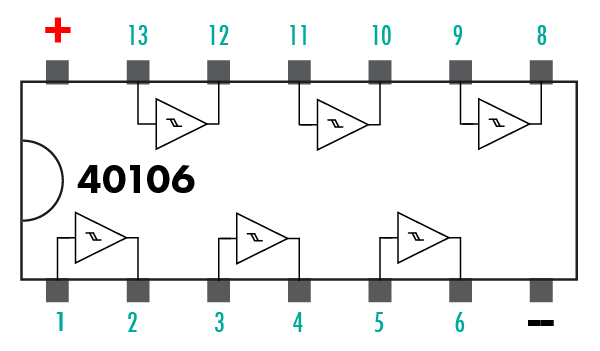

CD40106B on 6 inverteeritud Schmitti trigerit.

Multivibraatori võnkeperioodi arvutamine:

t={R}\cdot{C}\cdot{ln}(\frac{V_p}{V_n}\cdot\frac{(U-V_n)}{(U-V_p)})
